N1NKM's Homebrew AM TX!

This is THE NUMBER ONE of my "PRIDE & JOY" Projects! :)

(This page is only a very SHORT version. MUCH more detail can be found HERE!)

N1NKM's
Chattering smiley
Tech Stuff!
HOMEBREW!
"BOB"
(Bucket O' Bolts)
On The Air light

Please note:This transmitter is NOT a "standard" design! It is very unorthodox, due to my limited budget and having to work with the stockpile of junk parts that I have on hand. Therefore, even though this unit works quite nicely, please understand that it is NOT a recommended transmitter design, and I would NEVER use this kind of "engineering" for any kind of commercial use! This is strictly my HOBBY. :) It's something I do FOR FUN. This information is merely presented for those who are curious... I don't recommend you try this at home! ;)

NOTE to modem users: this page has several 80K+ pictures, which may take a few moments to load. Please be patient.

This page contains photos of my homebrew, tube AM transmitter (called "BOB"- Bucket O' Bolts) which is still under development... but is at a stable point right now.

This puppy now has a little brother! Check out "BOB Jr!"

Visitors to THIS PAGE since 6/04/2016
(Counter was reset by a server error.)

Brief revision history:
  • Dec 2004 - Project started. V1.0, "Little linear" boosted 2W AM to 14W
  • Spring 2004 - V1.5 - new power supply & 2'nd 6146 added, larger output coil used. 25 watt linear.
  • Sometime in 2005 - V2.0 New RF transformer. 30 watt linear.

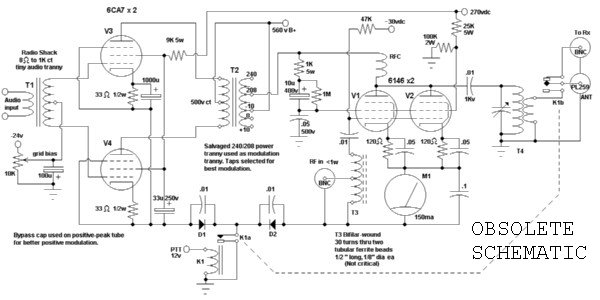

  • Later in 2005 - V3.0, New RF output coil and modulator added. 30 watts AM
  • V3.1, minor changes to parts layout & cosmetics

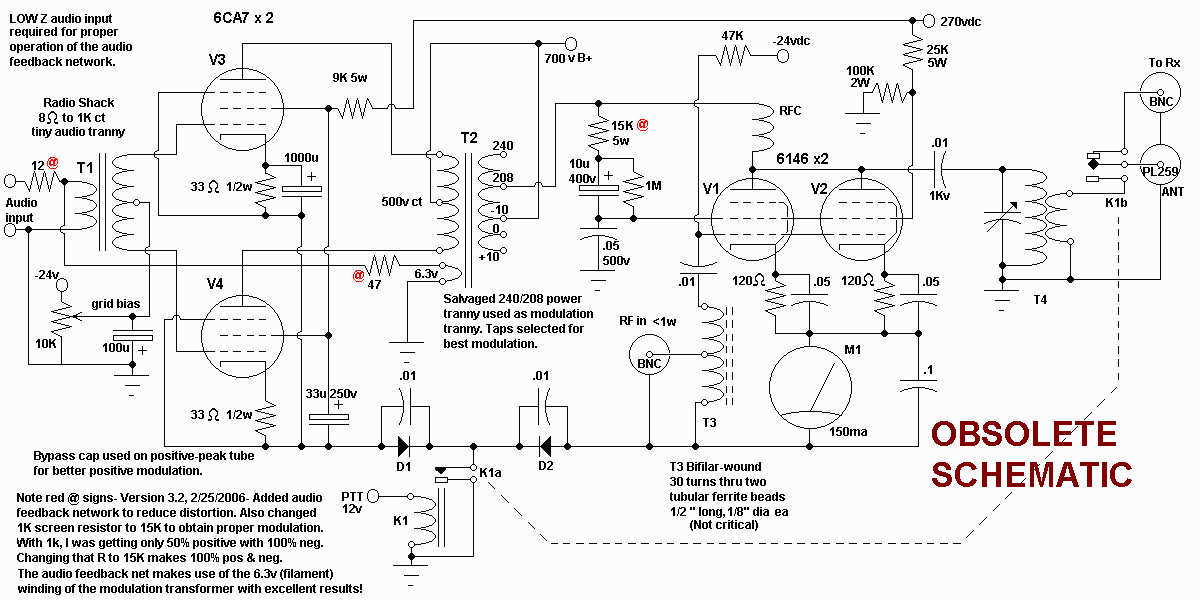

  • 2/26/2006 - V3.2, some tweaks to the audio stage & power supply. 50 watts AM
  • 3/4/2006 - V4.0, 12BY7 driver incorporated into chassis. Revised power supply and overall ckt. 55 watts AM
  • (date unknown) Using a 12HL7 instead of the 12BY7 gives slight performance improvement.
  • Dec 2010 - V4.3, incorporated a homebrew, PLL-controlled VFO/receiver.

Here's where it started: V1.0, 12W linear
Top view, oblique


Where it is now: V4.0 - 55 watt AM TX!
Version 4.0 of AM TX-TOP

(Click pic for large version.)
Not bad for a pile of JUNK, huh? Mad Max would be proud!

Click here to see the detailed progress toward V4.3! (V4.0 is shown above) It's now 55 watts and includes a built-in RF driver, push-pull modulator, and even boasts a homebrew, PLL-controlled exciter/receiver!
Yeah, "he's" come a long way from that V1.0 "Litte Linear"!


Back in fall of 2006, I added a band switch to allow use of this unit on 60 meters, where it functions as a linrar amplifier. With the RF generator providing a nice, 2.5Khz band-limited SSB signal, this is perfect for those 5 channels we presently have. I get 40 watts PEP so I'm well within the limit. :) The audio stage was modified for SSB use by adding a DPDT switch to open the cathode connection to gnd, and to short the secondary of the transformer.

The 1 ohm resistors in the audio cathode ckts is for curent measurement, only. (Grid bias set for 30mv = 30 ma current flow.)

Because this unit uses relay switching, it has that satisfying "Click!" when switching between TX & RX. ;)

The RF is supplied by a homebrew PLL frequency generator, which provides about 100mw of RF. The audio comes from the salvaged audio chip (& support components) of a fried computer sound card. (BTN!) I used tinsnips to trim off all of the unneeded portions of the card, then installed the audio amp inside a small box, shown in photo, above. That box also contains a 500hz sinewave oscillator, switch, level control pot, and PTT relay. It runs on 13.8vdc. So, this transmitter is actually 4 seperate boxes! It's amazing that the blooming thing works at all. ;) (The 4'th box is the D-104 mic preamp, which also runs on 13.8vdc.)

As I said at the top of this page, THIS IS NOT A STANDARD DESIGN!! It is built and adapted around my limited supply of parts and abundant supply of JUNQUE! ;)


I would really appreciate your input, ESPECIALLY if you heard me on the air!

WHY did I do this? Several reasons... #1, simply because I COULD! ;) I had all these parts laying around, and decided it was time to make something USEFUL out of them! Point #2 is because I love to build stuff! ESPECIALLY when it doesn't cost me a dime! :) Point #3 is just to PROVE that you really DON'T need to run "a full gallon" to have good conversations! 50 watts is PLENTY to maintain solid communications when the band is cooperating! All of the signal reports coming back are good, and the guys are quite surprised that I am running only 50 watts! Yep... 50 watts of PLATE-MODULATED power! "Class E" is cool, but THIS glows in the dark! Like a REAL radio! ;)


Important notes about TUBE POWER SUPPLIES:

Get some good, HV rated diodes. I have some that are rated for 1Kv that I use, but I use two, in series, with 1M ohm resistors across each diode. A .002Uf cap goes across each set. (You treat each pair of diodes/resistors & cap as if it were a single diode.) This does several things- it balances the reverse voltage across them and bypasses RF.

You ALWAYS want to put ceramic disc capacitors across the rectifier diodes in ANY transmitter! Failing to do this will result in a nasty buzz on the air. Why? Because as the diodes do their job of rectifying the AC power, that causes the RF to find a slightly different path for each 1/2 cycle of the 60Hz power. The caps cause the RF to bypass the diodes, so that their switching action doesn't do that to the RF.

Usually, to really get rid of hum, you want to use a choke. Several Henries, minimum. Make sure it can handle the current you'll be drawing. (figure 150ma per 6146 as a maximum) BTW, you DO NOT want to be running the 6146's with their plates glowing! I know they'll "handle it" OK, but they will not last very long! You want to be fairly GENTLE with them, to get as many years as possible... they don't exactly "grow on trees" anymore, after all. ;)

So you have the power transformer. That feeds the rectifer unit. A small capacitor there (a few microfarads at the required voltage) then the choke, then more capacitors. You want at least a few dozen uf, up to no more than a couple hundred. The more, the better, within reason. (You would NOT want 10,000 uf!) A good general value would be around 200uf for a 600v supply. You always want the caps to have a MINIMUM of 50% higher voltage rating than your supply delivers. (Safety margins! You do not ever want these things exploding!)

Another benefit to using solid-state diodes is that you're not wasting power to heat more filaments, and they will drop far less voltage under load. Putting a small resistor (47 ohms or so for ~200 ma supplies) between the rectifier and that first cap is a good idea. At 200ma current, that will drop just under 10v, which is insignificant. The main point of this small R is to reduce the SURGE CURRENT when you first apply power. It also reduces the PEAK power through the diodes which happens with each cycle of the AC mains. If you're going to use three 6146's, you want to drop the value of that R to 33 ohms. Four 6146's, drop it to 22 ohms.

You should be able to find PLENTY of schematics out there to help you with the actual circuts needed. Hopefully, what I've give here will get you going down the right path. BE CAREFUL, because those voltages are potentially LETHAL! (Not to mention QUITE PAINFUL!)


Just a little "rant", here...

There's this little section of PART 97 that applies:

97.313 Transmitter power standards: An amateur station must use the minimum transmitter power necessary to carry out the desired communications.

If you're one of those guys who would call this "PW", save your breath! Please. If you don't want to talk to me or hear me, don't answer my CQ or join my QSO... and please, for Pete's sake, don't jam me, OK? Just dial your VFO to another frequency and have a QSO with someone else. Keying up on me & those I am in QSO with doesn't prove anything. (Does it somehow make you feel "manly" to be able to clobber a 50 watt signal?! Get a life, man. Get a life.)

- The Wouff Hong -
Wouff Hong
It once struck terror into the hearts of LIDS, everywhere...

Whatever happened to this instrument of law and order??

If we are causing you QRM, just TELL US and we will QSY. Many times, I will QSY BEFORE being asked... if I am receiving QRM from you, then it's possible you may be receiving it from me... so in keeping with GOOD AMATEUR PRACTICE, I will QSY. This is something we should *ALL* strive to do. QSL?

Oh, and one more thing... while I do derive considerable enjoyment from my HOBBY of Amateur Radio, I really honestly DO have a LIFE. If malcontents and rule-breakers want to TRY to make my life miserable, they WILL NOT succeed! Why? SIMPLE... this transmitter (and all of my other radios) have an OFF SWITCH! Oh, and guess what? I know how to use them, and I will! If jamming me gives you some kind of kick, knock yourself out. I will just LAUGH at you, give my callsign to be legal, then shut the stupid thing off, and go upstairs. I have plenty of other things to do that I enjoy just as much (or more) as Ham Radio. I will adjust my schedule to operate when you are NOT on the air. There are PLENTY of really decent, intelligent, respectable people on the air with whom I will gladly QSO... People who have NO PROBLEM copying my 50 watt signal.

That's it for my soapbox.
