Building a REGULATED DC-DC converter!

N1NKM's
Chattering smiley
HAM page 3

Build
it!



PLEASE NOTE: This regulator design appears to work with almost any battery-powered flourescent lamp driver modules that have been modified into DC-DC converters.

This page contains a schematic to build a nice REGULATOR for the DC-DC Converter on my OTHER SITE. Uses for these are, of course, virtually unlimited, they can be used in any portable aparatus requiring high DC voltage at relatively low current. (Nice for running tube-type radios on 12v supplies!)

The lamp modules I used here easily provide approximately 200 volts DC. (Output current depends on module used.) Note, however, that these units operate at several dozen Khz AC, with a tremendous amount of radio frequency harmonics. If they are to be incorporated into any type of radio receiver, they MUST be thoroughly sheilded within a seperate metal box, and the input/output lines carefully RF bypassed to the chassis of the shield box. The LM317 regulator should be heatsinked. If possible, heatsinking the transistor in the converter unit is also recommended.

Note that I have not used one of these modules in this capacity, YET... This is purely experimental! I tried two different lamp modules, one designed for higher power (about 7w for a 4-D cell "camping" lantern.) and the small 4-AA cell unit, outlined on my OTHER SITE. The larger unit drove more than 20 ma, and the voltage varied only about 1%. No load was about 200v, with full load it sagged to about 198. Not bad for such a simple circuit! Of course, the key is the LM317, which is an outstanding regulator! The maximum output depends upon the HV module. I was able to get about 250v max, but 200 is more stable. This is quite adequate for most small radio tubes! In some cases, this circuit may self-oscillate, causing the output voltage to vary up and down rapidly. It may be necessary to experiment with capacitor values, and values of R2.

Because of the high voltage, extreme care must be taken to prevent accidentally shorting the HV output to ANY low voltage circuitry. The other page describes keeping BOTH sides of the HV isolated. In order to use this circuit, the negative side of the HV *MUST* be tied to circuit ground. It MIGHT be possible to build a -200v supply, by using a PNP transistor, and tying the positive side of the HV to gnd and use the negative, but I HAVE NOT TRIED THIS!

* WARNING * because this unit will generate 200 volts or more, you must BE CAREFUL when working with it! The HV capacitor can store that charge for quite some time, and the risk of a painful electric shock is very real, especially when the unit is operating! It will, eventually, drain off via the 1M resistor, though.

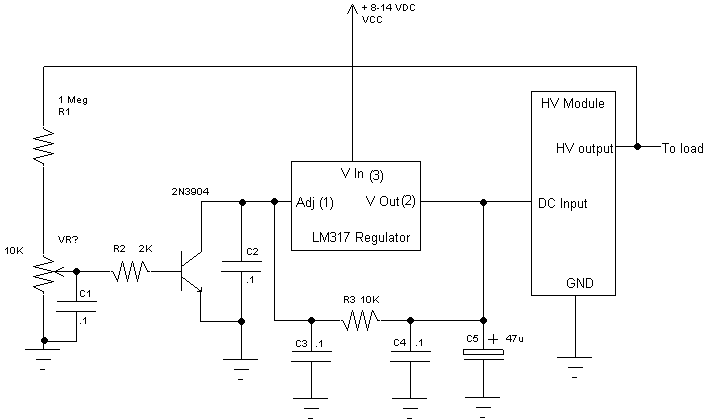

Regulator schematic

Please E-mail me with comments/suggestions.
